| 是否进口：否 | 产地：美国 | 加工定制：否 |
| 类型：磁粉探伤仪 | 品牌：Parker/派克 | 型号：B200S |
| 订货号：B200S | 货号：B200S | 测量范围：0-304mm |
| 分辨率：0-304mm | 尺寸：254*203.2*41.28mmmm | 重量：2.4kg |
| 是否跨境货源：否 |

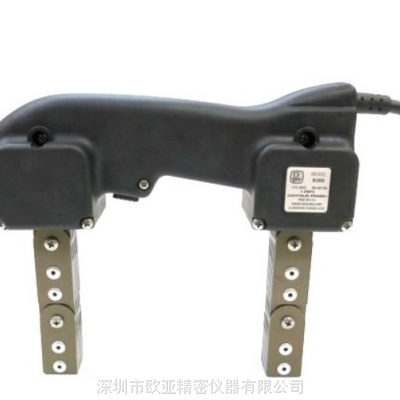

PARDER B200S 磁粉探伤仪 派克磁轭
产品介绍
· 双线圈设计，大大减少了握把过热问题
· 耐用的机壳，灵活的磁极，使您的测试随心所欲
· 体积小，质量轻
· 利用电磁感应产生一个***的交流磁场，具有极高的通用性
· 磁极可将高能的磁场集中施加到各种形状工件检测区，
快速准确发现材料中的缺陷
· 一年质量***
技术参数
型 号 | B200S |
电 源 | 230VAC |
频 率 | 50-60Hz |
电 流 | 2A |
磁 场 | 交流 |
重 量 | 3.18KG |
磁极间距 | 0-304mm |
提升力AC | >4.5KG |
工作环境 | 温度:-10-40°C相对湿度:- 10% to 95%,无凝结 |
外型尺寸 | 254*203.2*41.28mm |
电缆尺寸 | 3米 |
工作周期 | 2分钟开-2分钟关 |
符合标准 | ASME Section V, Article 7；ASTM E709；ASTM E1444；EN *** 9934-3 (230V Only) |
Description
Product Description
HANDHELD AC MAGNETIC YOKE
POWERFUL AC MAGNETIC FIELD
SLIM LINE ERGONOMIC HANDLE
OVERSIZED OPERATING SWITCH
LIGHTWEIGHT
DURABLE MOLDED CONSTRUCTION
TOTALLY REPAIRABLE
ONE-YEAR GUARANTEE
230VAC MODEL MAY BE CE CERTIFIED AT AN ADDITIONAL COST
The Instrument that does so much, so well
If you do any work with ferrous metals… in the shipyard, aerospace, steel mill, foundry, weldment or vehicle overhaul… you need the performance advantage of the B-200 Contour Probe.
Wide versatility & Precise Area Inspection
Mechanically, the B-200 Probe will conform to practically any surface configuration. Fully adjustable legs allow the strong AC field to be applied directly to the precise area to be inspected, regardless of part size or mass. Plus construction of the B-200 Contour Probe allows for the replacement of all internal components
One-Person Package
The B-200 Contour Probe is a complete magnetic package. One person takes it to work and easily performs a thorough and reliable inspection in a fraction of the time consumed by large bulky equipment. All the power and durability of the original B100, the B200 was designed with operator comfort in mind. Dual coils reduce outward heating and maintain a powerful AC field. A slim line ergonomic handle and oversized operating switch provides a comfortable grip, and is ideally suited for lengthy inspection applications.
